Industrial Stamping Press
From 25 to 630 Tons
-

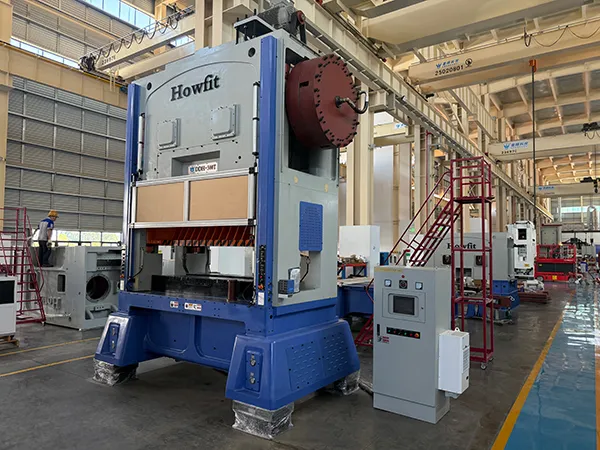

High-Speed Metal Stamping Press, 550 ton
The straight side crank press delivers 550 tons of pressing capacity with a 30 mm stroke and a high-speed range of 100-350 strokes per minute. It features a 3000×1500 mm worktable and a 2600×400 mm scrap outlet, equipped with a 75 kW main motor and a 3.7 kW die height adjustment motor. Its rigid frame and precise motion control make it ideal for large-size molds and high-accuracy metal stamping applications.

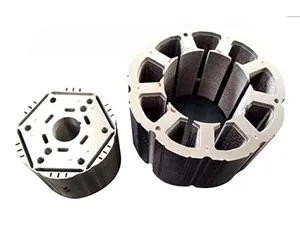

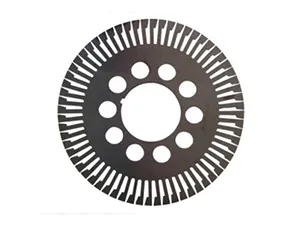

Samples of Stamped Parts
Straight Side Crank Press (550 ton), DDH-550T

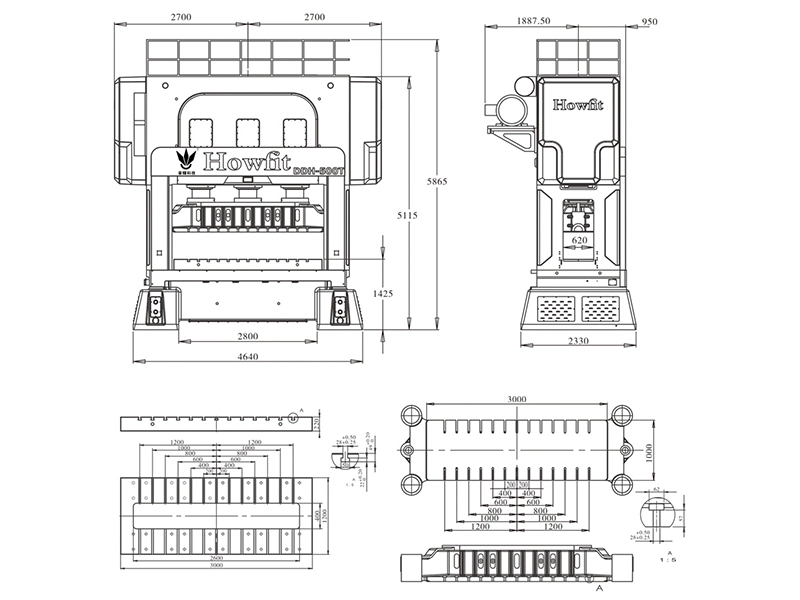

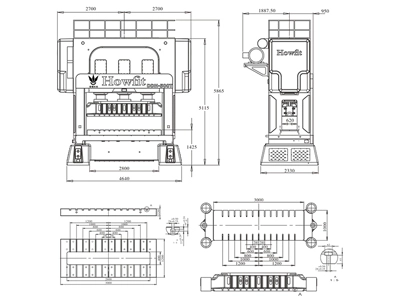

Outline Dimensions
Technical Specifications
| Press capacity (kN) | 550ton |
| Rated capacity point | 3.2mm |
| Stroke | 30mm |
| Stroke speed | 100-350 strokes per minute |
| Worktable size (bolster) | 3000×1500mm |
| Scrap hole size | 2600×400mm |
| Slide area | 3000×1500mm |
| Die height adjustment motor | 3.7kW |
| Main motor | 75kW |
| Dimensions | 4260×2300×5585mm |
| Total weight | approx. 100ton |
Mechanical Straight Side Press (550 ton), DDH-550ZW-4200
Outline Dimensions
Technical Specifications
| Press capacity (kN) | 5500 |
| Stroke (mm) | 50 |
| Rated capacity point (mm) | 3.2 |
| Stroke speed (spm) | 80-200 |
| Shut height (mm) | 500-600 (slide pad thickness 40mm) |
| Worktable size (bolster) (mm) | 4200×1300 |
| Slide area (mm) | 4200×1000 |
| Slide adjustment (mm) | 100 |
| Scrap hole size (mm) | 3800×500 |
| Bed side opening (mm) | 740 |
| Upper die lifting capacity (kg) | 4000 |
| Main motor (kW) | 45×6P-2 units (left-right dual drive) |
| Feed line height (mm) | 350±50 (need to be confirmed in advance) |
